Product Information
Window is a parallel flat plate usually used as a protective window for electronic sensors or environmental detectors. The window slice does not change the system magnification. The substrate materials include various optical glass, K9, ultraviolet fused quartz, infrared fused quartz, calcium fluoride (CaF2), magnesium fluoride (MgF2), zinc selenide (ZnSe), germanium (Ge), silicon (Si) and other crystal materials, and provide anti-reflection film, high reflection film, spectroscopic film, metal film and other optical coating. Broad band anti-reflection membrane can be used in ultraviolet, visible, near infrared and middle infrared bands.

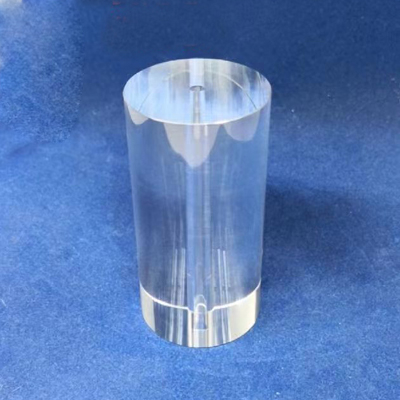

Sapphire window is a plane polishing product based on the processing of single crystal sapphire.
Sapphire has a full spectrum from 0.2-4 microns through the ability, in general optical applications, without coating treatment can meet the basic needs of customers. Our products can also be according to customer requirements for coating and heat treatment, in order to meet the special needs of customers.

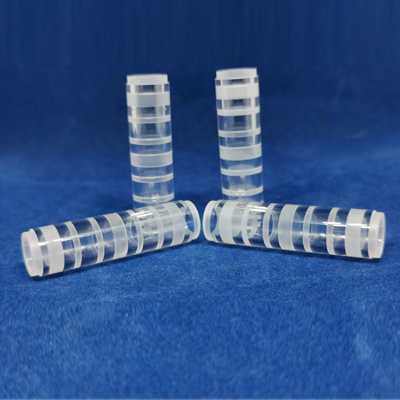

Product appearance is divided into: round, rectangular, step shape and a variety of machined shape.
Product size range: diameter (maximum diagonal) 10-500mm, thickness 0.3-100mm.
Product polishing finish: 80/50, 60/40, 40/20, 20/10, 10/5 optional (American standard).
Surface flatness: up to 1/10 lambda.
Advantages
Extreme hardness and high mechanical strength (withstands intense environmental conditions)
Excellent thermal conductivity/heat resistance
High transmittance (UV to IR)
Sapphire products in optical quality and with various crystal orientations
Polished surfaces and customized coatings for various applications
Supply Forms
| Supply Forms | Thicknesses | Dimensions |
| Customized processing polishing coatings (e.g. anti-reflective coatings) | from 0.2 mm to 300 mm | Ø from 10 to 300 mm Ø from 10 to 210 mm |
| Plano surface Spherical surface | ||
| Various shapes from round to square |
Technical Details
| Attribute | Commercial Quality | Precision Quality | Ultra-Precision Quality |
| Size (round and square) | Ø from 10 to 300 mm Ø from 10 to 210 mm | ||
| Size tolerance | ± 0.2 mm | ± 0.1 mm | ± 0.05 mm |
| Thickness | From 0.2 to 200 mm | ||
| Thickness tolerance | ± 0.1 mm | ± 0.1 mm | ± 0.05 mm |
| Parallelism | < 5 arc minutes | < 1 arc minutes | < 20 arc seconds |
| Surface accuracy (PV) | 5 λ (546 nm) | λ /2 (546 nm) | λ/10 (546 nm) |
| Surface quality (scratch & dig) | According to MIL 80 - 50 | According to MIL 40 - 20 | According to MIL 20 – 10 |
| Surface roughness (Rq) | < 5 nm | < 1 nm | < 0.5 nm |
| AR coating | Custom-designed | ||
| Order quantity | Depending on customer specifications. Please contact us. | ||
| Delivery time (weeks) | 6 - 10 weeks, assuming raw materials are available. | ||
| Mechanical Properties | ||
| Tensile strength | 40,000 – 60,000 psi (design criterion) | 0.27 – 0.41 GPa |
| Flexural strength | 70,000 –130,000 psi (design criterion) | 0.48 – 0.89 GPa |
| Young’s modulus, E (25 °C) (modulus of elasticity) | 50 x 106 psi | 345 GPa |
| Compressive modulus, K | 55 x 106 psi | 379 GPa |
| Flexural modulus (modulus of rupture) | 52 x 106 psi | 358 GPa |
| Shear modulus, G (modulus of rigidity) | 21.5 x 106 psi | 148 GPa |
| Bulk modulus, k (volumetric modulus of elasticity) Poisson’s ratio | 35 x 106 psi 0.29 | 241 GPa |
